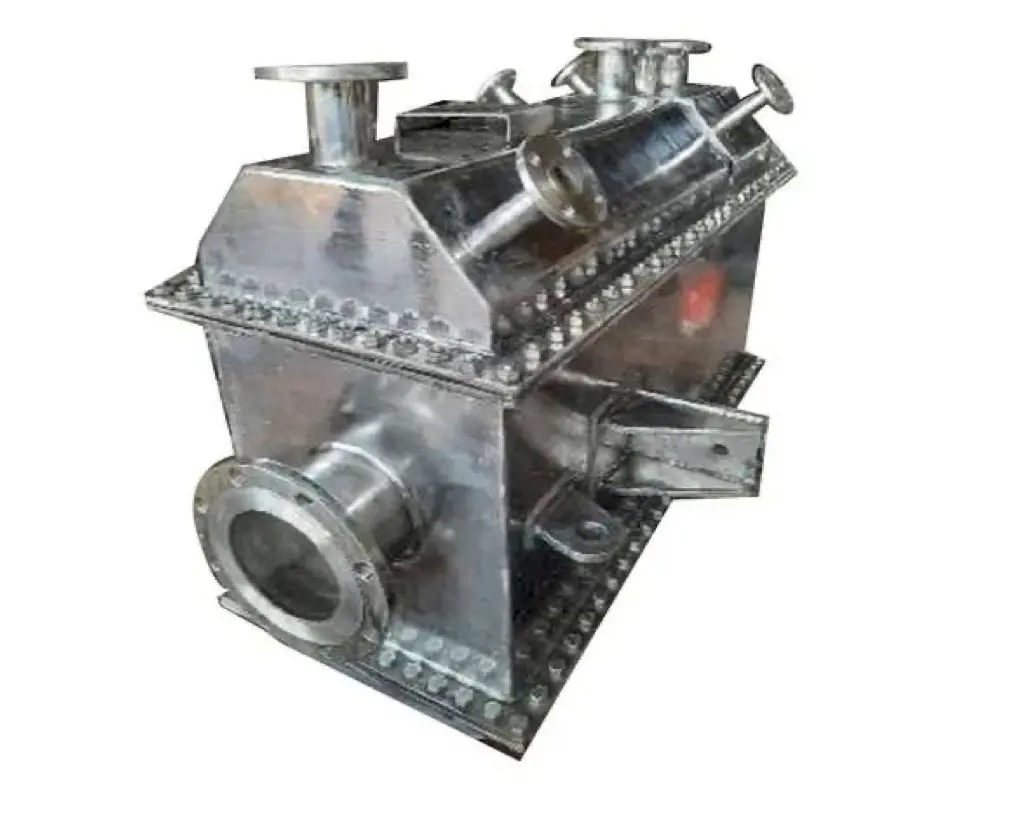

Box Condenser

Raviraj Engineering’s Stainless Steel Box Condenser is a compact cross-flow unit for fast vapor condensation and solvent recovery. Its box design packs a large heat-exchange area into a small footprint, boosting efficiency with low pressure drop. Made in SS 304/316/316L with precision welds and flanged/tri-clamp connections, it suits continuous, hygienic industrial service.

product-img-background
Applications: distillation plants, reactors, evaporators, solvent recovery systems, pharma & API units, chemical processing, fragrances, and food-grade vapor cooling.
  • Serving chemical, pharmaceutical, food & dairy, petrochemical, and agrochemical industries.
  • Decades of experience in custom-built process plant equipment.
  • Integrated solutions with storage tanks, distillation columns, and heat exchangers.
  • ISO 9001:2015 certified with ASME compliance and comprehensive quality assurance.
  • Compact, Space-Saving Design: Advanced tube condenser layout cuts heat exchanger footprint by 30–40%—ideal for tight plant areas.
  • Cost-Effective Operation: Delivers 30–50% overall savings through lower utility use, reduced installation time, and minimal maintenance.
  • All-in-One Condensing System: One skid/box unit replaces primary & secondary condensers plus solvent recovery equipment, simplifying your process line.
  • 100% Fully Drainable: Hygienic, dead-leg-free construction ensures complete drainage on both shell and tube sides.
  • High Condensation Efficiency: Cross-flow heat transfer boosts vapor condensation rate and improves solvent recovery yield.
  • CIP Friendly & Easy to Clean: Smooth SS finish and optimized flow paths provide excellent response to CIP cleaning for faster turnaround.
Fertilizers Industry Icon
Fertilizers
Food and Dairy Industry Icon
Food and Dairy Industries
Petrochemical Industry Icon
Petrochemical Industries
Pharmaceutical Industry Icon
Pharmaceutical Industries

Description:
Raviraj Engineering’s Stainless Steel Box Condenser is a compact, cross-flow heat transfer unit designed for rapid condensation of vapors and effective solvent recovery. The box-type construction provides a large heat exchange area in a smaller footprint, delivering higher condensation efficiency with low pressure drop. Built in SS 304/316/316L with precision welding and flanged/tri-clamp connections, it is ideal for continuous industrial service and hygienic processes.

Applications: distillation plants, reactors, evaporators, solvent recovery systems, pharma & API units, chemical processing, fragrances, and food-grade vapor cooling.

Key Highlights: compact design, high heat transfer rate, fully drainable build, CIP-friendly for easy cleaning, rugged leak-proof body, and customizable size, passes, and surface area.

Box Condenser Installations and Fabrication

Box Type Heat Exchanger
Box Type Heat Exchanger
